20" Aug M-Lok Handguard w/ Top Rail
20" Aug M-Lok Handguard w/ Top Rail
Couldn't load pickup availability

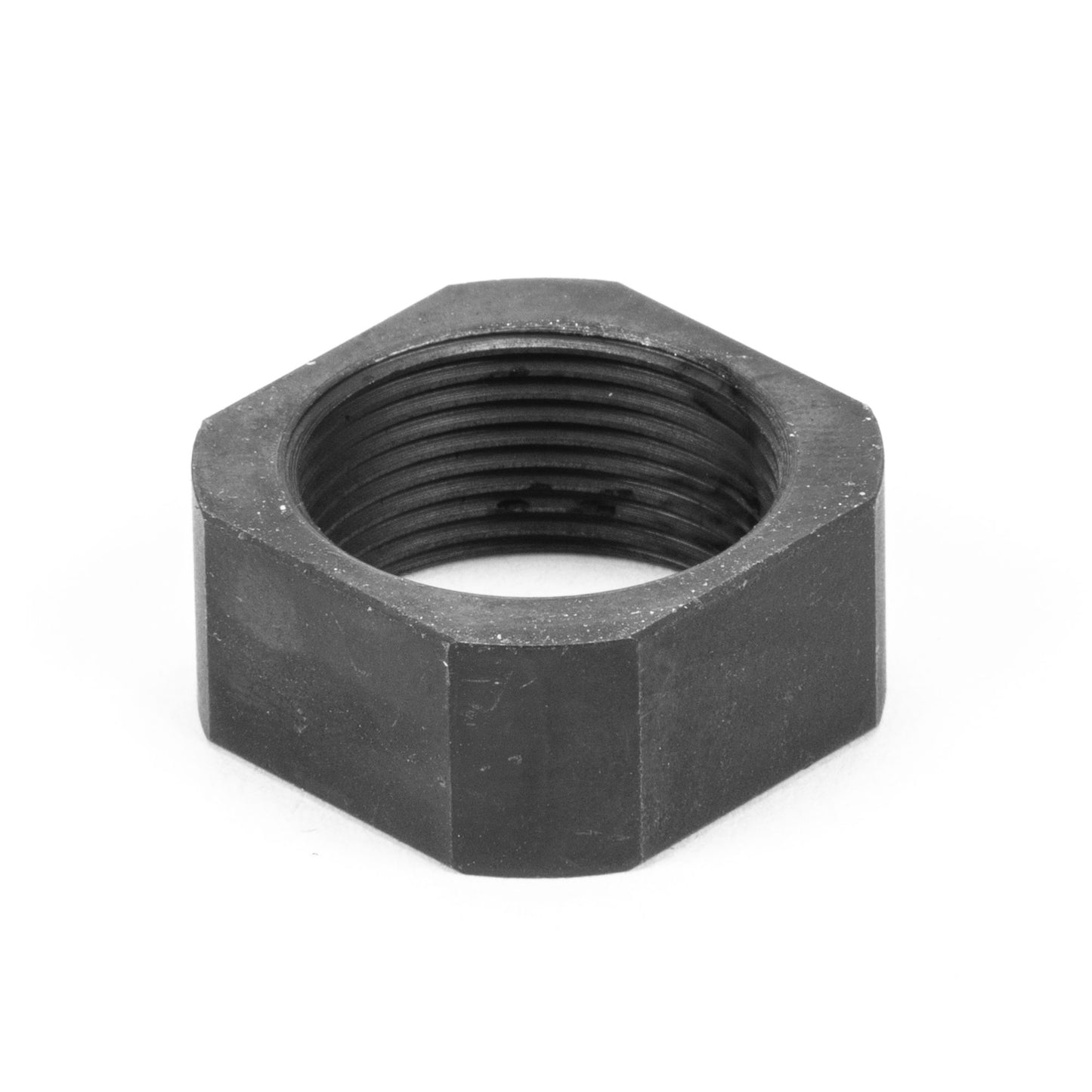

The Underworld Arms Aug M-Lok handguard is 8.25" long and is machined from T6-6061 with a black anodized finish and includes a top rail for extending the iron sight radius. The handguard includes a black oxide 304 SS locking nut, a black oxide 304 SS mounting nut, and a black polymer centering plug for use during install.
When installed the quick change barrel feature is functional and gas adjustment is accessible, the original grip can be left on or removed.
The UA Aug M-Lok handguard mounts to the barrel using our proprietary hybrid method that takes inspiration from an AR15 style barrel nut and the Aug's locking flash hider nut.
This 8.25" Aug handguard is designed for 20in barrels, if you have a 16in barrel you will need to purchase our 16" Aug handguard HERE.
This handguard will fit on A1, A2 and A3M1 receivers, it is not compatible with SA or A3M2 receivers due to their extended top rail.
Installation:
To install the handguard remove your muzzle device, degrease your bayonet lug threads and the mounting nuts to remove all oils, apply rocksett or a similar threadlocker to your bayonet lug threads. Thread on the square locking nut with the unthreaded ID facing the receiver, thread on the wing shaped mounting nut with the wing side facing the receiver. Orient the flats of the mounting nut at the 12 o-clock and 6 o-clock and tighten the nuts together. Slide your handguard on and attach it to the mounting nut with the included 8-32 screws. Be sure to use your choice of thread locker on the screws so they do not back out. Test the barrel's quick detach function, if the handguard rail engages the receiver then unthread your mounting nut a half rotation.
Rocksett has a 24 hour setup time, you do not need to rush the process there is plenty of time to line everything up perfectly.
Dimensions:
Length- 8.25"
Width- 1.7"
Inside Diameter- 1.52"
Weight- 11.4oz
Suppressor and quick mount compatibility:
Any suppressor mount will fit, this gen 1.5 handguard stops before the barrel threads begin.
Customer Reviews
Very happy with this product. The customer support is excellent as well. Highly recommend.

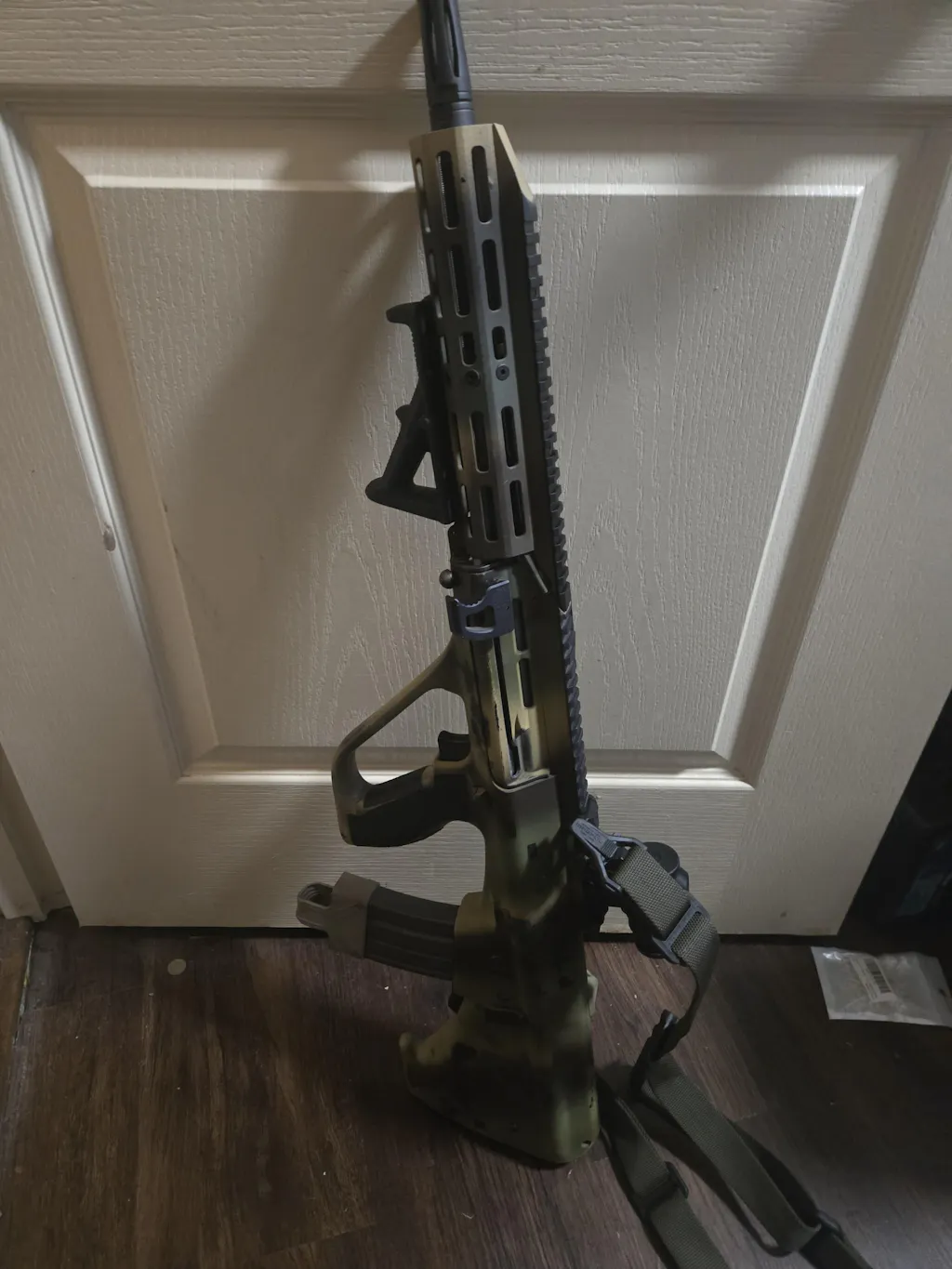

I already do have the 16" version, and now I got me the 20" version too for my second AUG. The quality and fit is just great.
Even better is my experience with the support. I contacted Underworld Arms. Usually I received the answers in just a few minutes. Very friendly and very helpful.
I can recommend this company and their products to 100%!!!
I love the Handguard .. I wish you sold one in FDE 20”Aug M-lok or Pictinny rail ..

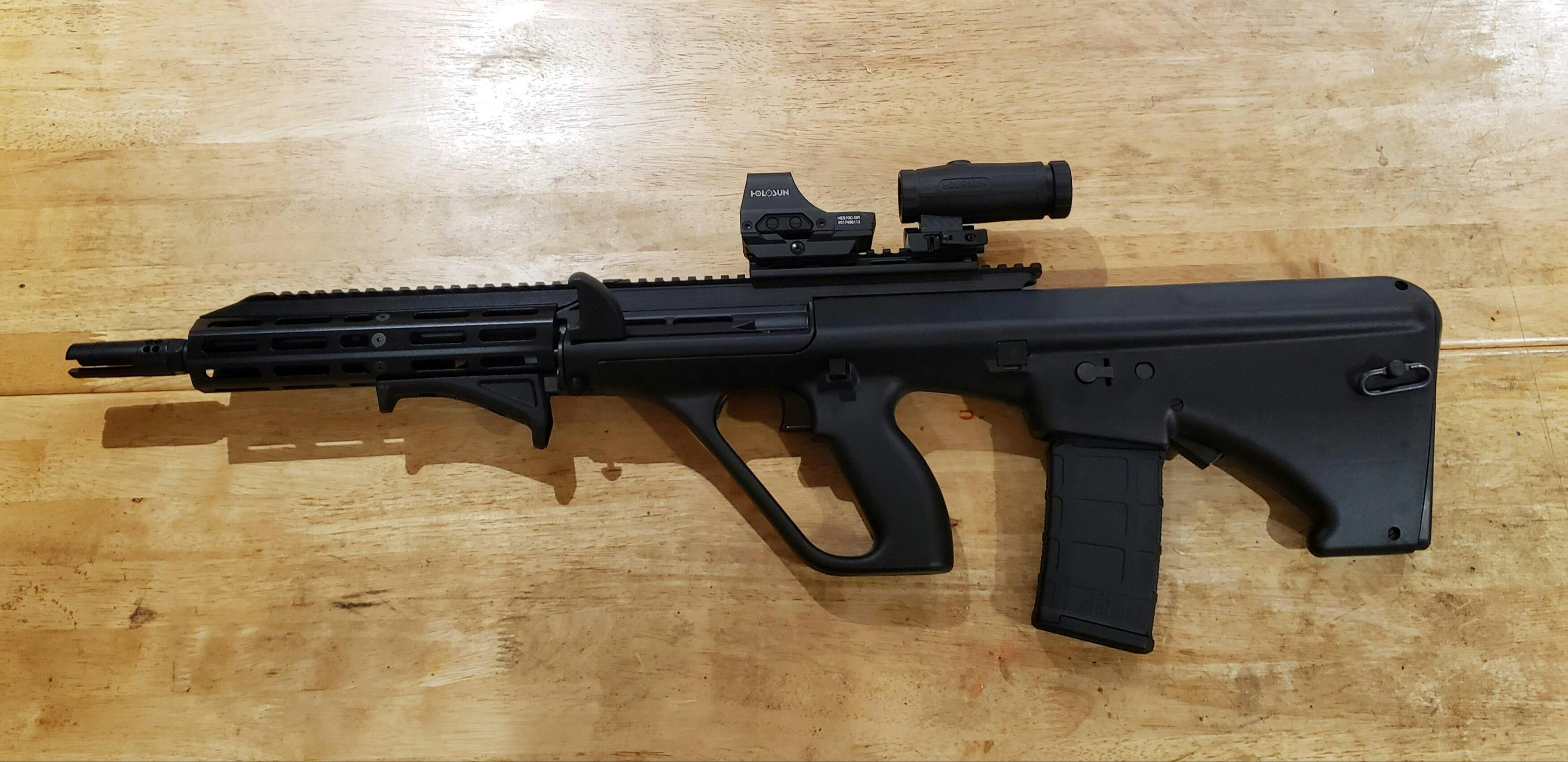

Fits and looks great.
